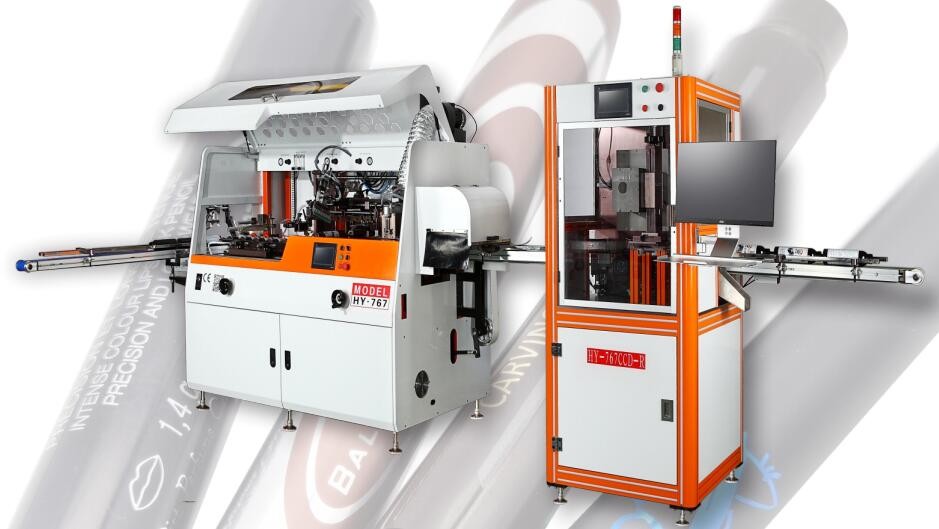

Automatic Screen Printing Machine with CCD Visual Inspection Production Line

Model：HY-767CE CCD

Automatic Screen Printing Machine

Automatic Screen Printing Machine with CCD Visual Inspection

Description

HY-767CE CCD Automatic Screen Printing Machine + CCD Visual Inspection Production Line customized combined silk screen printing and vision inspection automatic production line, to meet the higher standard requirements of various printing and packaging processes.

Advance

Customized combined silk screen printing and vision inspection automatic production line, to meet the higher standard requirements of various printing and packaging processes.
Suitable for round, oval, square and other products; entire line is with reasonable structure, convenient debugging and stable operation.
Electronic components and control systems used on the entire line are internationally famous brands, to ensure higher quality and huger quantity of products.
It can be customized and installed with automatic labeling, hot stamping and other functions, and flexibly combine fully automated one-stop production lines.
The same machine and the same computer can realize the simultaneous operation of defect detection and printing positioning dual systems

Specifications:

Shape of Application Object	Cylindrical, Elliptical, Square, Flat etc.
Size of Application Object	D 25-60mm L 60-280mm
Type of Application Object	cream jars, penholders, lotion bottles, bottle caps, hard plastic bottles, glass bottles, metal bottles, hoses, soft plastic bottles, etc.
Max. Speed	4000-5000pcs/hr
Object Quality Inspection and Accuracy	more printing (area) ≥0.1mm², less printing (area) ≥0.1mm², stains (area) ≥0.5mm², scratches (area) ≥0.1mm², inaccurate color registration (size) ≥0.2mm, hot stamping deviation (size) 0.2mm-2.5mm, color difference ≥△E4 elimination; the above detection accuracy can be adjusted freely
Object False Detection Rate	only falsely detected as unqualified products, products that pass the test are absolutely 100% qualified products
Power Supply	Printer AC380V 50HZ 9KW 3Phase
Power Supply	CCD AC220V 50HZ 2.5KW
Air Pressure	5-7kg/cm²
Whole Line Dimension	Printer 2800(L) X 2500(W) X 2100(H)mm
Whole Line Dimension	CCD 2300(L) X 1500(W) X 2200(H)mm
