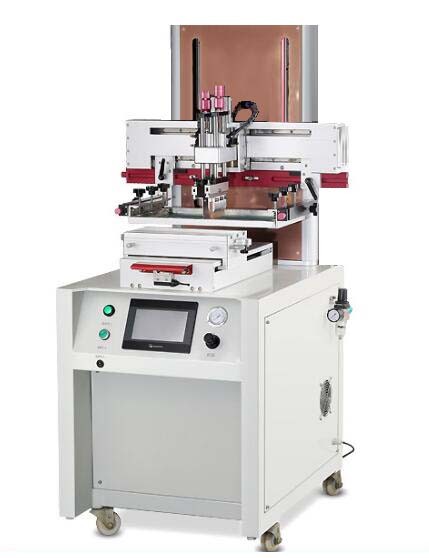

High Speed Flat Screen Printing Machine With Sliding Table

Description

This type of pneumatic flat-bed vacuum screen printing machine is suitable for precise screen printing on substrates in PCB Board, Sheet, Film or Cube forms which with smooth flat surface and made of as metal, plastic, ceramic, glass, wood etc...

Parameter
1. Printing Color: one Color
2. Maximum printing area: 150*200mm
3. Transverse stroke: 300mm
4. Worktable size: 150x300mm
5. Max height of printing products: 150mm
6. Max screen frame: 350x500mm
7. Power:  110V/220V  50-60hz 60W
8. Air pressure: 4-6bar
